Overview

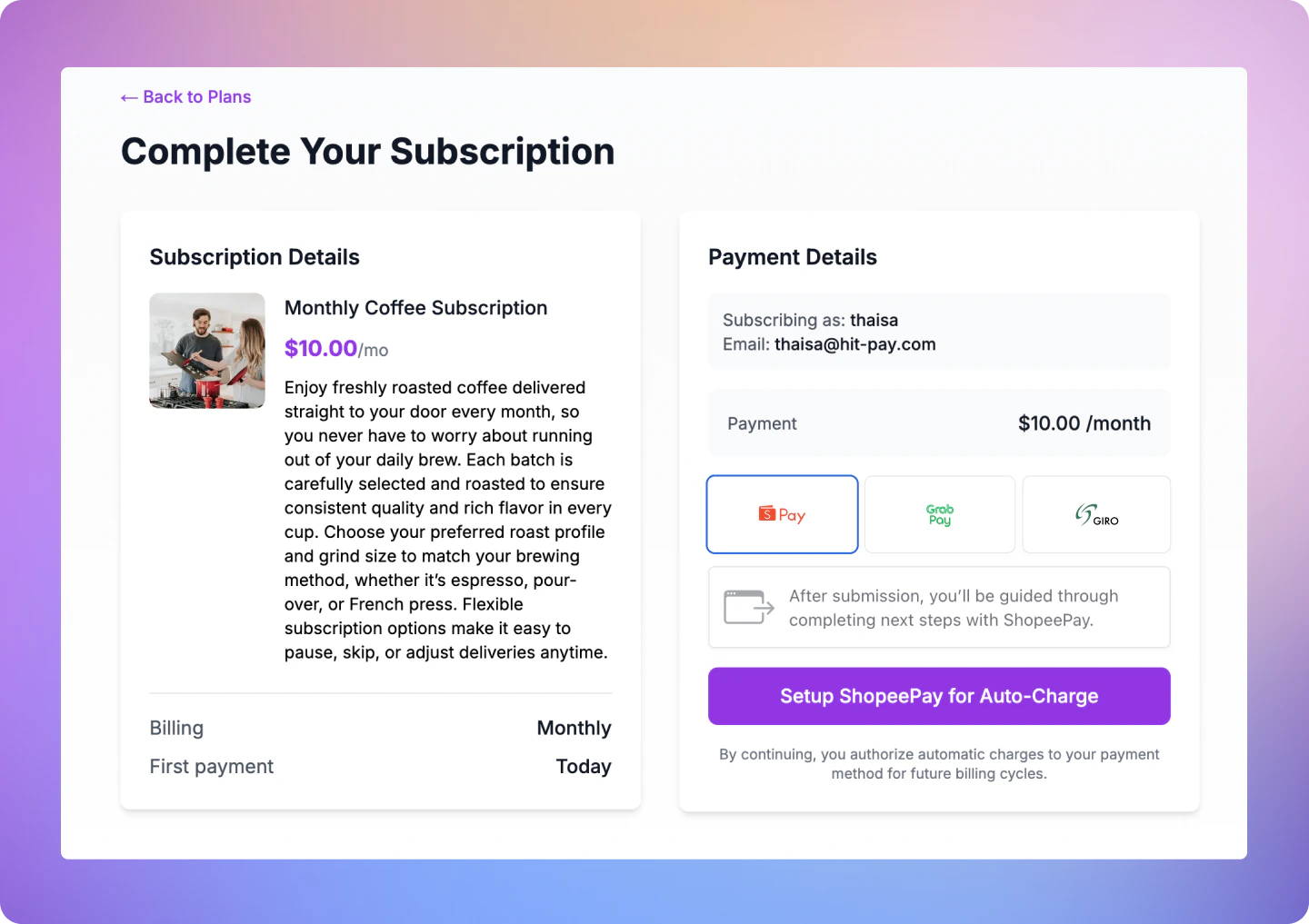

Keep customers on your site when they set up a recurring payment method. Instead of redirecting them to a HitPay-hosted page, pass a method-specific parameter (generate_direct_link, generate_qr, or generate_instructions) to receive a link, QR code, or setup instructions directly in the API response — ready to render in your own UI.

Supported Payment Methods

Payment Method	Code	Parameter	Response type	Currencies
ZaloPay	`zalopay`	`generate_qr`	`qr_code_data`	VND
Shopee Pay	`shopee_pay`	`generate_direct_link`	`direct_link` (web URL)	SGD, MYR, PHP
GrabPay	`grabpay_direct`	`generate_direct_link`	`direct_link` (web URL)	SGD, MYR
Touch ‘N Go	`touch_n_go`	`generate_direct_link`	`direct_link` (web URL)	MYR
LINE Pay	`line_pay`	`generate_direct_link`	`direct_link` (LINE deep link)	THB
GIRO	`giro`	`generate_instructions`	`instructions`	SGD

Send exactly one generate parameter per request (generate_direct_link, generate_qr, or generate_instructions). The parameter must match the payment method — sending generate_qr for shopee_pay, for example, returns a 400 error. Omitting all three generate parameters defaults to the hosted-page flow.

How It Works

Create a Recurring Billing with the method-specific parameter

Call POST /v1/recurring-billing with exactly one generate parameter (generate_direct_link, generate_qr, or generate_instructions) and exactly one payment_methods[] entry. The API initiates the APM setup immediately and returns qr_code_data, direct_link, or instructions inline.

Present the Link or Instructions

Render the returned data in your UI: show the link as a button or display the setup steps for GIRO.

Customer Completes Setup

The customer taps the link or follows the GIRO instructions.

Receive Webhooks

HitPay fires recurring_billing.method_attached and recurring_billing.subscription_updated when the payment method is linked and the subscription activates. If a charge is made, charge.created is fired — listen to this event to confirm a successful payment.

Step 1: Create a Recurring Billing

Endpoint

POST /v1/recurring-billing

Request Parameters

Send exactly one generate parameter per request. For redirect-based methods (shopee_pay, grabpay_direct, touch_n_go, line_pay), redirect_url is also required when using generate_direct_link. Sending more than one generate parameter returns a 400.

Parameter	Description	Example
`name`	Required. Name for this billing session.	Spotify Premium
`customer_email`	Required. Customer’s email address.	[email protected]
`customer_name`	Optional. Customer’s name.	Paul
`amount`	Optional when `payment_methods` contains only APMs (`zalopay`, `shopee_pay`, `grabpay_direct`, `touch_n_go`, `line_pay`) and `save_payment_method: true`. Required otherwise.	9.90
`save_payment_method`	Set to `true` to save the payment method.	true
`currency`	Currency code.	sgd
`payment_methods[]`	Required. Exactly one method per request.	grabpay_direct
`generate_direct_link`	Set to `true` to receive a `direct_link` inline. Use with `shopee_pay`, `grabpay_direct`, `touch_n_go`, or `line_pay`.	true
`generate_qr`	Set to `true` to receive `qr_code_data` inline. Use with `zalopay`.	true
`generate_instructions`	Set to `true` to receive `instructions` inline. Use with `giro`.	true
`redirect_url`	Required when using `generate_direct_link`. Not required for `generate_qr` or `generate_instructions`.	https://example.com/success
`description`	Description shown to the customer.	Spotify Membership
`reference`	Your internal reference ID for this customer or session.	cust_123
`send_email`	Send email receipt to customer. Default: `false`.	true
`customer_phone_number`	Required for `shopee_pay`. Customer’s phone number.	91234567
`customer_phone_number_country_code`	Required for `shopee_pay`. Country code of the phone number.	65

Example Requests

curl --location --request POST 'https://api.sandbox.hit-pay.com/v1/recurring-billing' \
--header 'X-BUSINESS-API-KEY: your_api_key' \
--header 'X-Requested-With: XMLHttpRequest' \
--header 'Content-Type: application/x-www-form-urlencoded' \
--data-urlencode 'name=Spotify Premium' \
--data-urlencode '[email protected]' \
--data-urlencode 'customer_name=Tan Ah Kow' \
--data-urlencode 'amount=9.90' \
--data-urlencode 'currency=sgd' \
--data-urlencode 'save_payment_method=true' \
--data-urlencode 'payment_methods[]=shopee_pay' \
--data-urlencode 'generate_direct_link=true' \
--data-urlencode 'customer_phone_number=91234567' \
--data-urlencode 'customer_phone_number_country_code=65' \
--data-urlencode 'redirect_url=https://merchant.com/billing/complete'

curl --location --request POST 'https://api.sandbox.hit-pay.com/v1/recurring-billing' \
--header 'X-BUSINESS-API-KEY: your_api_key' \
--header 'X-Requested-With: XMLHttpRequest' \
--header 'Content-Type: application/x-www-form-urlencoded' \
--data-urlencode 'name=Spotify Premium' \
--data-urlencode '[email protected]' \
--data-urlencode 'customer_name=Nguyen Van A' \
--data-urlencode 'amount=99000' \
--data-urlencode 'currency=vnd' \
--data-urlencode 'save_payment_method=true' \
--data-urlencode 'payment_methods[]=zalopay' \
--data-urlencode 'generate_qr=true'

curl --location --request POST 'https://api.sandbox.hit-pay.com/v1/recurring-billing' \
--header 'X-BUSINESS-API-KEY: your_api_key' \
--header 'X-Requested-With: XMLHttpRequest' \
--header 'Content-Type: application/x-www-form-urlencoded' \
--data-urlencode 'name=Spotify Premium' \
--data-urlencode '[email protected]' \
--data-urlencode 'customer_name=Lim Wei' \
--data-urlencode 'amount=9.90' \
--data-urlencode 'currency=sgd' \
--data-urlencode 'save_payment_method=true' \
--data-urlencode 'payment_methods[]=giro' \
--data-urlencode 'generate_instructions=true'

Step 2: Present the Response in Your UI

The response includes all the standard recurring billing fields plus one of the following objects depending on the payment method.

QR code (`qr_code_data`) — ZaloPay

Render the qr_code value as a scannable QR image in your UI.

Example Response — ZaloPay

{
  "id": "9741164c-06a1-4dd7-a649-72cca8f9603c",
  "customer_name": "Nguyen Van A",
  "customer_email": "[email protected]",
  "name": "Spotify Premium",
  "cycle": "save_card",
  "cycle_repeat": null,
  "cycle_frequency": null,
  "currency": "vnd",
  "amount": 99000,
  "status": "scheduled",
  "save_payment_method": 1,
  "payment_methods": ["zalopay"],
  "qr_code_data": {
    "qr_code": "00020101021238570010A000000727...",
    "qr_code_expiry": "2026-04-10T15:30:00"
  },
  "created_at": "2026-04-10T15:00:00",
  "updated_at": null
}

Field	Type	Description
`qr_code`	string	QR code string to render as a scannable image.
`qr_code_expiry`	string	ISO 8601 timestamp when the QR code expires.

Direct link (`direct_link`) — Shopee Pay, GrabPay, Touch ‘N Go

Render direct_link_url as a button (e.g. “Authorise with Shopee Pay”). On mobile, use direct_link_app_url to open the payment app directly if available.

Example Response — Shopee Pay

{
  "id": "9741164c-06a1-4dd7-a649-72cca8f9603a",
  "customer_name": "Tan Ah Kow",
  "customer_email": "[email protected]",
  "name": "Spotify Premium",
  "cycle": "save_card",
  "cycle_repeat": null,
  "cycle_frequency": null,
  "currency": "sgd",
  "amount": 9.9,
  "status": "scheduled",
  "save_payment_method": 1,
  "payment_methods": ["shopee_pay"],
  "redirect_url": "https://merchant.com/billing/complete",
  "direct_link": {
    "direct_link_url": "https://shopeepay.sg/u/account-linking-agreement_sg?client_id=abc123...",
    "direct_link_app_url": "shopeesg://main?apprl=%2Frn%2FTRANSFER_PAGE%3F...",
    "expiry_time": null
  },
  "created_at": "2026-04-01T15:00:00",
  "updated_at": "2026-04-01T15:00:00"
}

Field	Type	Description
`direct_link_url`	string	Web redirect URL. Always present. Use this on desktop or as a fallback on mobile.
`direct_link_app_url`	string \| null	App deep link for mobile app-to-app flows. Present for Shopee Pay; `null` for GrabPay and Touch ‘N Go.

Instructions (`instructions`) — GIRO

Display the steps as a numbered list. Make the reference value copyable so the customer can paste it into their banking portal.

Example Response — GIRO

{
  "id": "9741164c-06a1-4dd7-a649-72cca8f9603b",
  "customer_name": "Lim Wei",
  "customer_email": "[email protected]",
  "name": "Spotify Premium",
  "cycle": "save_card",
  "cycle_repeat": null,
  "cycle_frequency": null,
  "currency": "sgd",
  "amount": 9.9,
  "status": "scheduled",
  "save_payment_method": 1,
  "payment_methods": ["giro"],
  "instructions": {
    "reference": "RPSHISXMB1E",
    "steps": [
      "Log in to your DBS/POSB Internet Banking Account on the Web",
      "Click on Pay > Add GIRO Arrangement",
      "Under Billing Organisation, select HitPay",
      "Add RPSHISXMB1E as Bill Reference",
      "Enter 0 under Payment Limit",
      "Click on Next and hit Submit"
    ]
  },
  "created_at": "2026-04-01T15:00:00",
  "updated_at": "2026-04-01T15:00:00"
}

Field	Type	Description
`reference`	string	The bill reference the customer enters in their banking portal.
`steps`	string[]	Ordered setup instructions. Display as a numbered list.

Step 3: Customer Completes Setup

Shopee Pay / GrabPay / TNG

Customer taps the link or is redirected to the provider’s authorisation page, then returns to your redirect_url.

GIRO

Customer logs in to DBS/POSB internet banking and follows the displayed steps. This may take 1–3 business days to activate.

Step 4: Handle Webhooks

Register Your Webhook

Navigate to Developers > Webhook Endpoints in your dashboard
Click New Webhook
Enter a name and your webhook URL
Select the events you want to receive:
- recurring_billing.method_attached — Payment method successfully linked
- recurring_billing.subscription_updated — Subscription status changes (e.g., scheduled → active)
- charge.created — A charge was successfully processed.
Save your webhook configuration

Webhook Payload

When a payment is completed, HitPay sends a JSON payload to your registered webhook URL with the following headers:

HTTP Header	Description
Hitpay-Signature	HMAC-SHA256 signature of the JSON payload, using your salt value
Hitpay-Event-Type	`completed`
Hitpay-Event-Object	`payment_request`
User-Agent	`HitPay v2.0`

Validating the Webhook

To ensure the webhook is authentic, validate the Hitpay-Signature header:

Receive the JSON payload and Hitpay-Signature from the request
Use your salt value (from the dashboard) as the secret key
Compute HMAC-SHA256 of the JSON payload using your salt
Compare the computed signature with Hitpay-Signature - they must match

function validateWebhook($payload, $signature, $salt) {
    $computedSignature = hash_hmac('sha256', $payload, $salt);
    return hash_equals($computedSignature, $signature);
}

// Usage
$payload = file_get_contents('php://input');
$signature = $_SERVER['HTTP_HITPAY_SIGNATURE'];
$salt = 'your_salt_from_dashboard';

if (validateWebhook($payload, $signature, $salt)) {
    $data = json_decode($payload, true);
    // Process the payment confirmation
    // Mark order as paid
} else {
    http_response_code(401);
    exit('Invalid signature');
}

const crypto = require('crypto');

function validateWebhook(payload, signature, salt) {
    const computedSignature = crypto
        .createHmac('sha256', salt)
        .update(payload)
        .digest('hex');
    return crypto.timingSafeEqual(
        Buffer.from(computedSignature),
        Buffer.from(signature)
    );
}

// Usage in Express
app.post('/webhook', (req, res) => {
    const payload = JSON.stringify(req.body);
    const signature = req.headers['hitpay-signature'];
    const salt = 'your_salt_from_dashboard';

    if (validateWebhook(payload, signature, salt)) {
        // Process the payment confirmation
        // Mark order as paid
        res.status(200).send('OK');
    } else {
        res.status(401).send('Invalid signature');
    }
});

FAQs

Does this change existing integrations?

No. If you omit all three generate parameters, the API behaves exactly as before — returning the HitPay hosted page url. No migration required.

Can I use these parameters for card payments?

No. The method-specific generate parameters only work for supported APMs.

What happens if I send more than one generate parameter?

The API returns a 400 error. Send exactly one generate parameter per request.

What happens if the parameter doesn't match the payment method?

The API returns a 400 error with a message indicating the correct parameter to use (e.g., "shopee_pay does not support QR-based setup. Use generate_direct_link instead.").

What if the customer completes setup but I miss the webhook?

Existing webhook retry logic applies. You can also check the recurring billing status via GET /v1/recurring-billing/{id} — if the method is linked, status will be active.

Production Checklist

Change the base URL to https://api.hit-pay.com/v1/
Update API keys and salt values from the production dashboard
Ensure the APM provider is onboarded in your production account
Register your webhook URL in production and subscribe to recurring_billing.method_attached and recurring_billing.subscription_updated

Getting Started

Developers

Point of Sale

Online Store

Tools

Manage Payments

Integrations

Appendix

Embedded Recurring APMs

Overview

Supported Payment Methods

How It Works

Step 1: Create a Recurring Billing

Endpoint

Request Parameters

Example Requests

Step 2: Present the Response in Your UI

QR code (`qr_code_data`) — ZaloPay

Direct link (`direct_link`) — Shopee Pay, GrabPay, Touch ‘N Go

Instructions (`instructions`) — GIRO

Step 3: Customer Completes Setup

Shopee Pay / GrabPay / TNG

GIRO

Step 4: Handle Webhooks

Register Your Webhook

Webhook Payload

Validating the Webhook

FAQs

​Overview

​Supported Payment Methods

​How It Works

​Step 1: Create a Recurring Billing

​Endpoint

​Request Parameters

​Example Requests

​Step 2: Present the Response in Your UI

​QR code (qr_code_data) — ZaloPay

​Direct link (direct_link) — Shopee Pay, GrabPay, Touch ‘N Go

​Instructions (instructions) — GIRO

​Step 3: Customer Completes Setup

Shopee Pay / GrabPay / TNG

GIRO

​Step 4: Handle Webhooks

​Register Your Webhook

​Webhook Payload

​Validating the Webhook

​FAQs

Overview

Supported Payment Methods

How It Works

Step 1: Create a Recurring Billing

Endpoint

Request Parameters

Example Requests

Step 2: Present the Response in Your UI

QR code (`qr_code_data`) — ZaloPay

Direct link (`direct_link`) — Shopee Pay, GrabPay, Touch ‘N Go

Instructions (`instructions`) — GIRO

Step 3: Customer Completes Setup

Step 4: Handle Webhooks

Register Your Webhook

Webhook Payload

Validating the Webhook

FAQs
